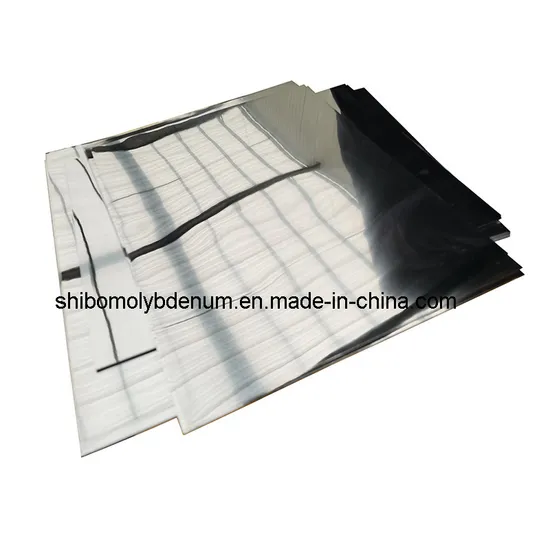

Bright Molybdenum Sheets

Basic Info.

Model NO.	MS-1
Purity	>99.95%
Alloy	Non-alloy
Type	Molybdenum Sheet
Powder	Not Powder
Density	10.2g/cm3
Thickness	0.1mm ( Min )
Width	600mm ( Max )
Surface	Cold Rolled
Grade	Mo1, Tzm, Mola
Transport Package	Wooden Box
Specification	ISO9001
Trademark	SHIBO
Origin	China
HS Code	81029500
Production Capacity	20 Ton/Month

Product Description

Molybdenum sheets from 0.005 inches to 0.150 inches in thickness is classified as

molybdenum refractory sheet. It is used for fabrication of sintering boats, high

temperature furnace heating elements and heat shields.

Molybdenum plates from 0.187 inches to 3 inches in thickness is classified as

molybdenum refractory plate. It is widely used in the construction of furnace tooling

and parts and as a feed stock for the fabrication of parts for the electronics and

semiconductor industries,

1) Specification:

3) The purity guarantee for the molybdenum sheets & plates:

Company introduction:

Zhengzhou Shibo Nonferrous Metals Products Co., Ltd, as a high technology enterprise was established in 2005, located in Zhengzhou City, Henan Province, China, with registered capital of RMB 20 million, covered an area of more than 6000 square meters and employee more than 100 peoples, we specialized in manufacturing tungsten&molybdenum ( powder, sheets, rods wires, parts, etc ), MoSi2&SiC heating elements, high temperature lab muffle furnaces, tungsten copper alloy, including the development, production, and sales, we always provide our customers top quality products and best service.

Bright molybdenum sheets for vacuum furnaces

Products	molybdehum sheets, molybdenum plates
Name of material	Molybdenum ( Pure): Mo>=99.95% TZM: 0.5% Ti / 0.08% Zr / 0.01-0.04 C Molybdenum lanthanum alloy: 0.3% - 0.6% La2O3
Density at 20 degree	10.2g/cm3
Size	Thickness:>=0.1mm Width: 20-900mm Length: Less than 2500mm
Standard	ASTM, GB3876-83
Surface	Hot rolling, Alkali washing, cold rolling, polished.
Characteristics:	high melting point(2610C), high strength, high level of thermal conductivity, a low coefficient of thermal expansion, excellent resistance to oxidation at high temperatures, excellent resistance to electrochemical corrosion,

2) The sizes and tolerance for molybdenum sheets & plates:
Thickness	tolerances	width	tolerances	length	tolerances	flatness(%)
0.1mm	±0.01mm	600mm	±1mm	2000mm	±1mm	< 2%
0.2mm	±0.02mm	600mm	±1mm	2000mm	±1mm	< 2%
0.3mm	±0.02mm	600mm	±1mm	2000mm	±1mm	< 2%
0.4mm	±0.03mm	600mm	±1mm	2000mm	±1mm	< 2%
0.5mm	±0.03mm	600mm	±1mm	2000mm	±1mm	< 2%
0.8mm	±0.05mm	600mm	±1mm	2000mm	±1mm	< 2%
1mm	±0.06mm	600mm	±1mm	2000mm	±1mm	< 2%
1.5mm	±0.06mm	600mm	±1mm	2000mm	±1mm	< 2%
2mm	±0.06mm	600mm	±1mm	2000mm	±1mm	< 2%
3mm	±0.2mm	500mm	±1mm	500mm	±1mm	< 2%
4mm	±0.2mm	500mm	±1mm	500mm	±1mm	< 2%

Al	Bi	Sb	Ni	Sn	Cu	Cd
<0.001	<0.001	<0.001	<0.001	<0.001	<0.001	<0.001
Ca	Mg	Si	P	Pb	Fe	O
<0.001	<0.001	<0.003	<0.001	<0.001	<0.001	<0.002
C	N	Mo
<0.001	<0.002	>=99.95
